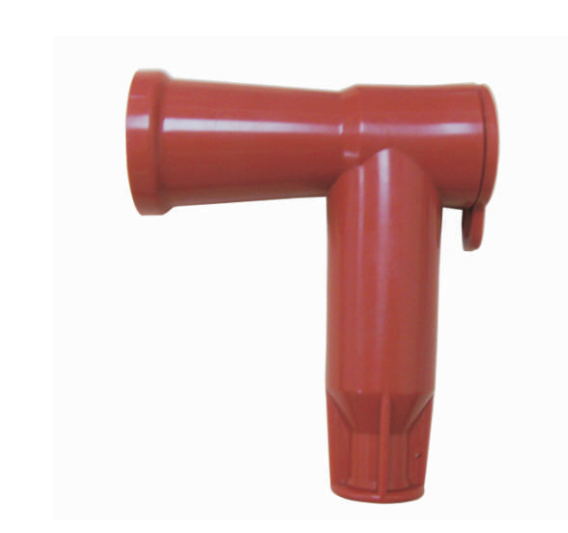

These are insulated T-shape (Right angled) pre-molded unscreened silicone bushing boots suitable for use on 12kV Type”C” 630A bushings. It has a very compact gas-insulated secondary switchgear where the spacing between bushings is significantly reduced. The pre-molded shape ensures optimal/full contact over the the entire Type “C” bushing profile thus improving its ability to eliminate unwanted leakage currents.

FEATURES

  • Quick and easy to install.
  • Easy to remove and re-install.
  • No specialized tools required.
  • Compact profile provides for greater air clearance.
  • In accordance with requirements of NRS012 /NRS053.
  • Not tracking elastomeric housing offers excellent erosion resistance, dielectric properties and environmental.
  • No slip/slide off the Type “C” bushings once
  • Suitable to be used with all indoor terminations.

APPLICATIONS (12-24kV)

  • Compact Sf6 gas-insulated secondary switchgear (RMU’s and Type B mini-substations).
  • Metal box filled with air.
  • Distribution transformers.
  • CT-VT metering Units.

PACKAGING

  • Supplied in a kit (1 set for 3 core) with all necessary parts, approximate gross weight : 5kg.

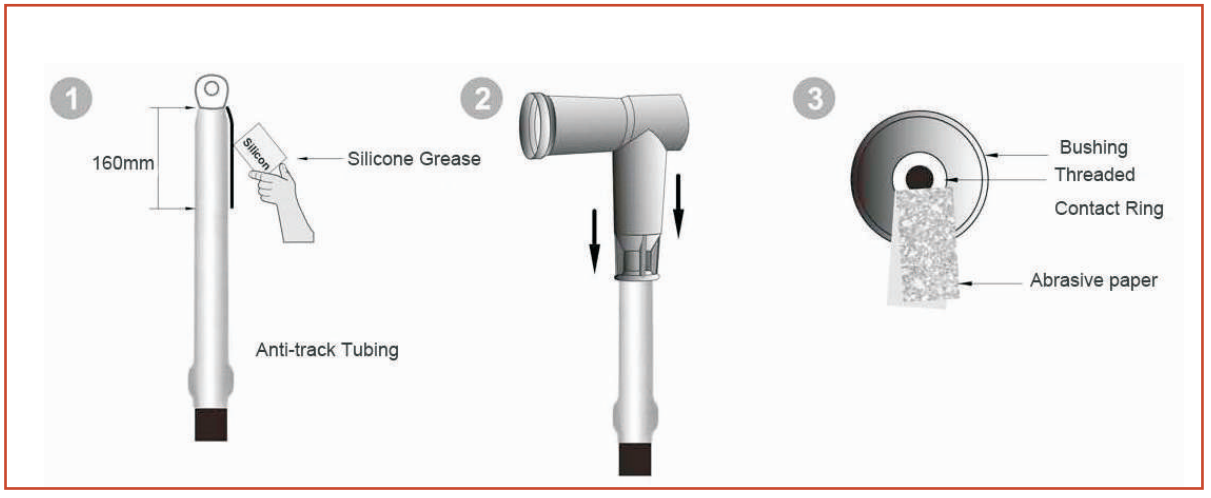

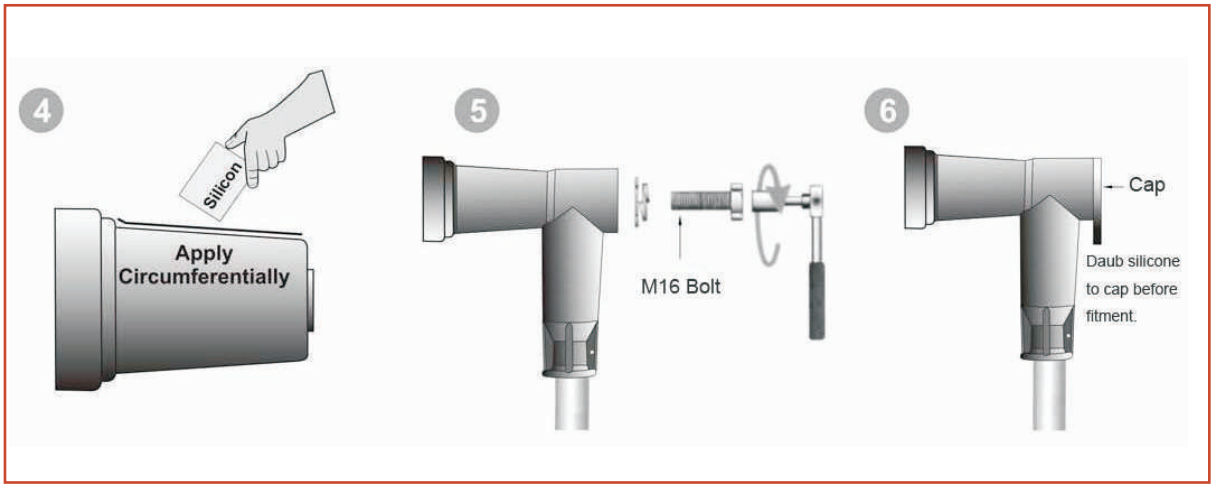

Installation Diagram

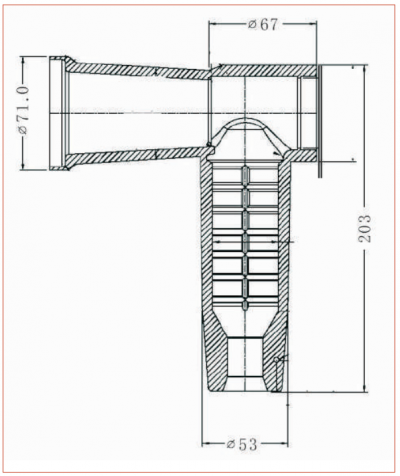

Technical Diagram

1

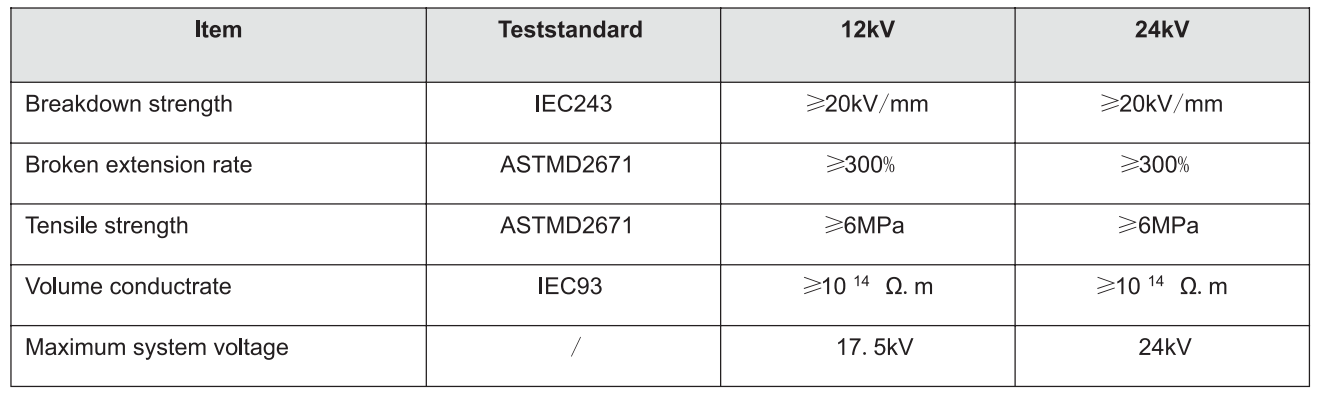

Technical Data
