LV bolted straight joint connector

LV bolted straight joint connector

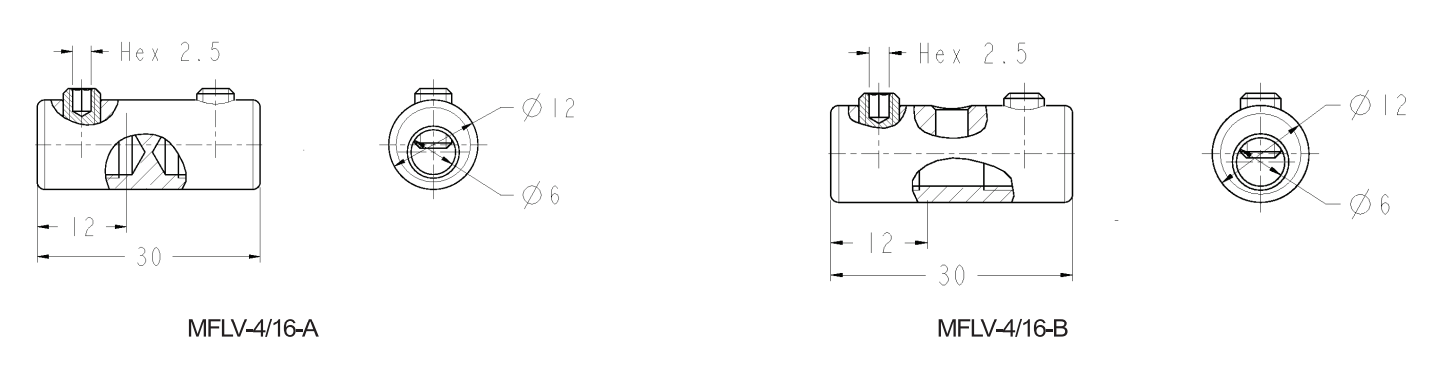

MFLV-4/16-A, MFLV-4/16-B

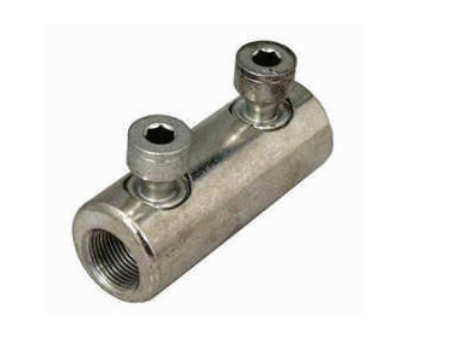

These bolted connectors are designed for use in low voltage underground joints.

A brass body; its inner surface grooved at the manufacturing stage provides excellent electrical contact. 2 steel bolts. Need a unique and standard tool: wrench with socket for 2.5 mm A/F inner hexagon to tighten the bolts. With a central barrier (blocked A) or without central barrier (unblocked B)

APPLICATIONS

  • LV underground network.
  • Suitable for solid or stranded copper conductors.

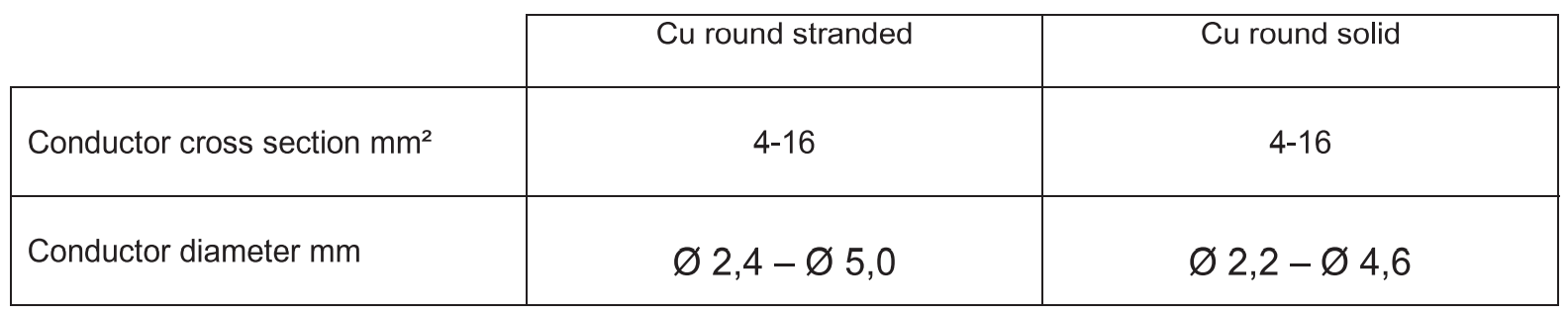

  • Conductor sizes: 4 to 16 mm² copper.

ELECTRICAL PROPERTIES

  • Excellent Electrical performance.
  • Connection copper cable.

MATERIALS

  • Connector body from brass, bolts from steel.

STANDARDS AND SPECIFICATIONS

  • Designed to meet DIN-47640 requirements

  • Designed to meet IEC-61238-1 class A requirements
