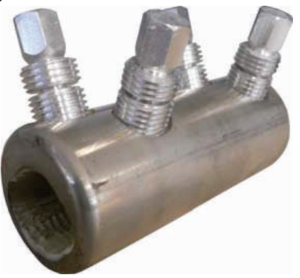

LV bolted straight joint connector

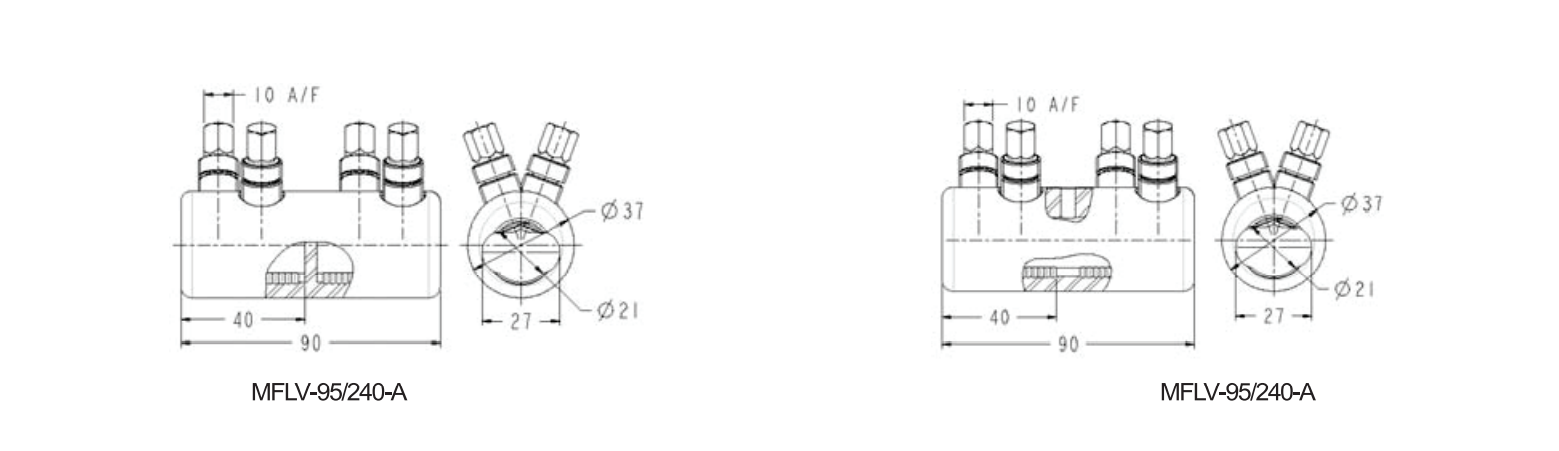

MFLV-95/240-A, MFLV-95/240-B

These shear bolt connectors are designed for use in low voltage underground joints.

A tin plated aluminium alloy body; its inner surface grooved at the manufacturing stage provides excellent electrical contact. 4 aluminium alloy bolts with a shear head in order to control the optimum tightening torque. Need a unique and standard tool: wrench with 10 mm A/F socket to tighten the bolts. With a central barrier (blocked A) or without central barrier (unblocked B)

APPLICATIONS

LV underground network.
Suitable for solid or stranded, round or sectorial aluminium or copper conductors.

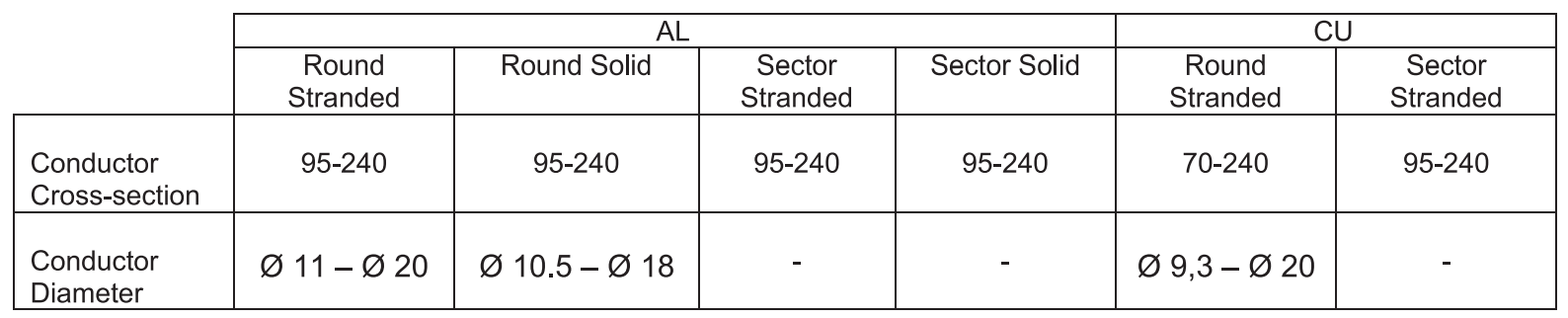

Conductor sizes: 95 to 240 mm² aluminium and copper.

ELECTRICAL PROPERTIES

Excellent Electrical performance.
Connection aluminium or copper cable.

MATERIALS

All components made from aluminium alloy Lubricated with special grease and wax.

STANDARDS AND SPECIFICATIONS

Designed to meet DIN-47640 requirements
Designed to meet IEC-61238-1 class A requirements
