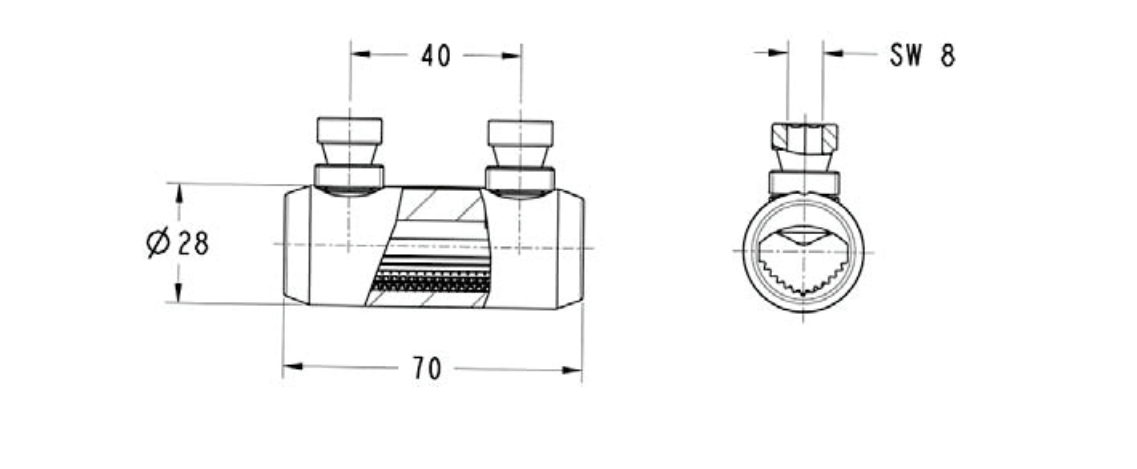

LV bolted straight joint connector

MFLV-25/150-A, MFLV-25/150-B

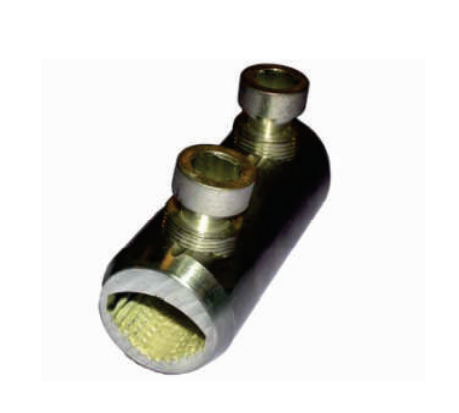

The connector is made of aluminium alloy body tin plated or natural finish. Its inner surface grooved at the manufacturing stage provides good electrical contact with wires to be joined.

2 aluminium alloy clamping bolts with a shear head in order to control the nominal optimum tightening torque. With a central barrier (blocked A) or without central barrier (unblocked B)

APPLICATIONS

LV underground network.
Suitable for solid sectorial aluminium or copper conductors.

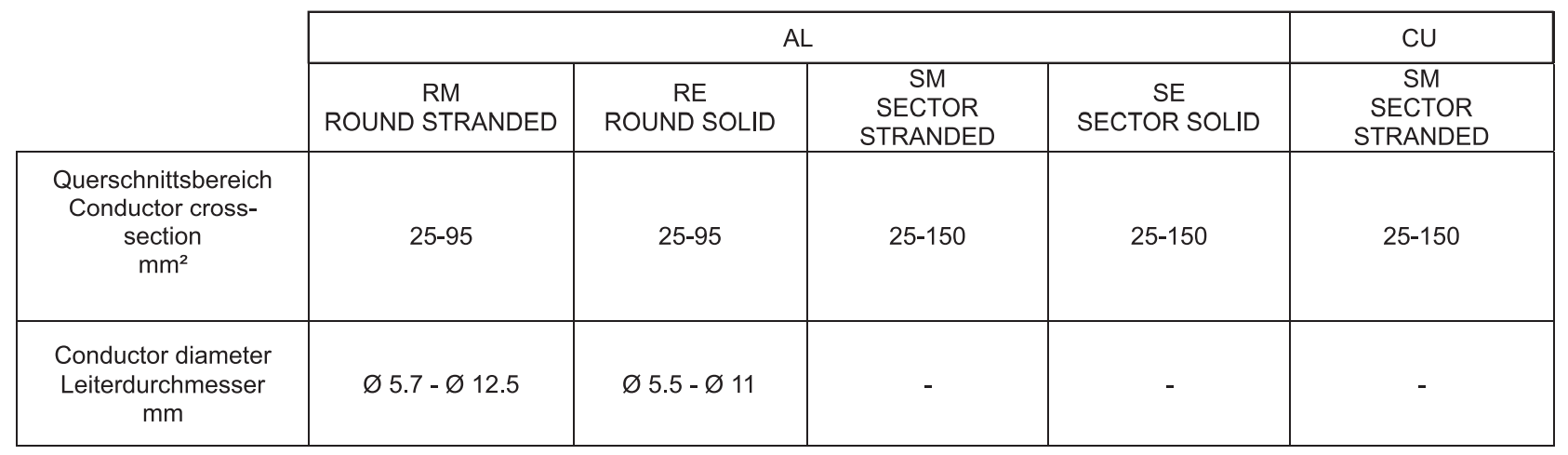

Conductor sizes: 25 to 150 mm² aluminium and copper.

ELECTRICAL PROPERTIES

Excellent Electrical performance.
Connection aluminium or copper cable.

MATERIALS

All components made from aluminium alloy Lubricated with special grease and wax.

STANDARDS AND SPECIFICATIONS

Designed to meet DIN-47640 requirements
Designed to meet IEC-61238-1 class A requirements
