WDWT - Heat Shrink

WDWT

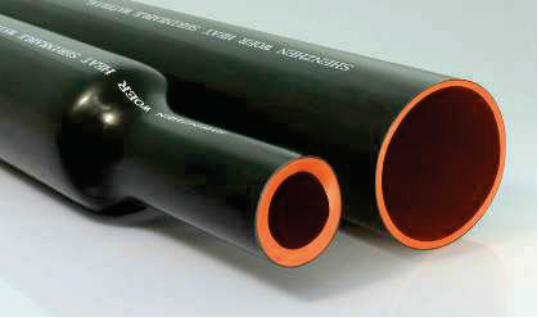

Heat Shrink Anti-tracking Insulation Tube

  • Manufactured from cross linked polyolefin, inner coated with adhesive at one end.
  • Protecting against accidental flash over.
  • Used in medium voltage cable terminations up to 42kV
  • Shrink temperature: start at 90°C, and fully recovered at 130°C
  • Colour – Red

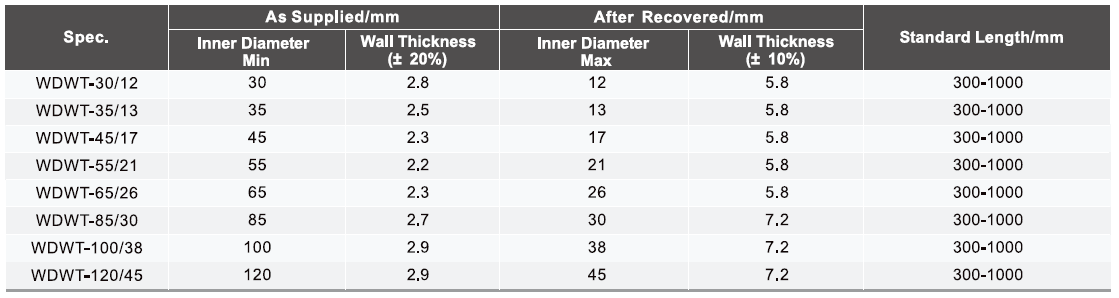

Selection Table

Technical Data

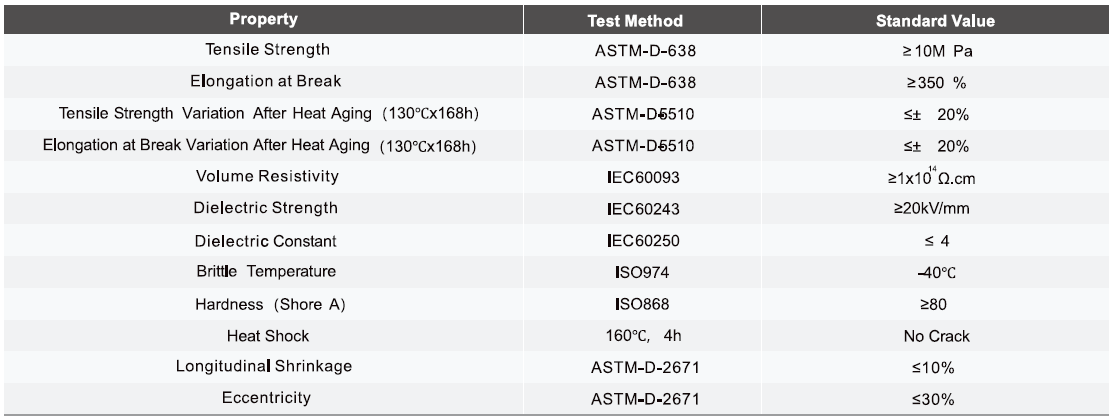

Technical Data Inner Insulation

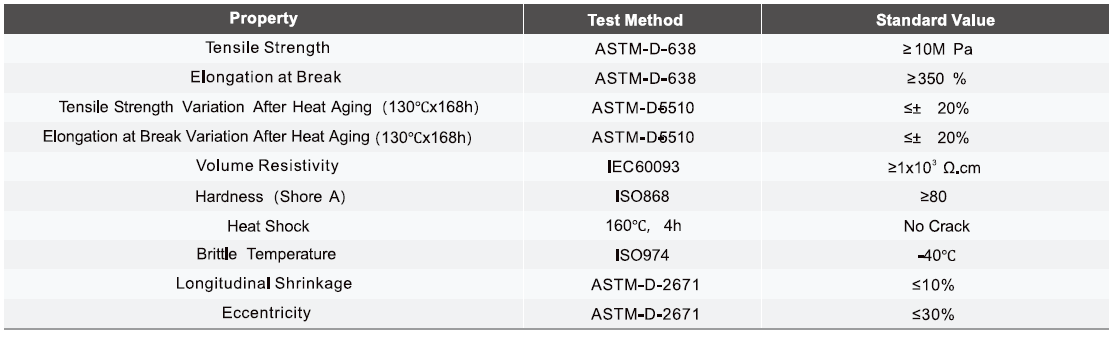

Technical Data-Outer Semi-Conductive
